SHAKO AIR PREPARATION
Since it's foundation in 1980, for more than 3 decades SHAKO CO. LTD., has dedicated its entire resources to the field of pneumatic products and committed its energies to develop and produce new products meeting the ever-demanding needs of automation.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Shako Air Preparation PDF catalogue. Scroll through the listed products below for individual product information or click the series link you would like to view:
FILTERS
Part Number: F200A - Miniature, UF - Standard & Large
Function: Removes water and particles effectively
Port size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Filtration: 5μm (Standard), 40μm (Option)
Part Number: SSF200- Miniature, USF - Standard
Function: For high pressure use, corrosion and chemical resistance
Port size: 1/4" (Miniature), 1/4" to 1/2" (Standard)
Filtration: 5μm (Standard), 40μm (Option)
Bore Sizes: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm
Twin guided double-acting magnetic. Air (Lubrication not necessary).
REGULATORS
Part Number: NR200 - Miniature, UR - Standard, Large & Extra Large
Function: Accurate and easy pressure setting, panel mounting available.
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1/2" (Standard & Large), 1 1/2" & 2" (XL)
Operating Pressure Range: 0 - 8kg f/cm2 (Miniature), 0.5 - 10kg f/cm2 (Standard), 0 - 8kg f/cm2 (Extra Large)
Part Number: SSR200 - Miniature, USR - Standard (Large on request)
Function: For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard)
LUBRICATORS
Part Number: L200A - Miniature, UL - Standard & Large
Function: Oil spray mist ensures good lubrication for machines.
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature), 0.5 - 10kg f/cm2 (Standard)
Part Number: SSL200 - Miniature, USL - Standard, USR - Large
Function: For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard), 0.5 - 60kg f/cm2 (Large)
FILTER REGULATORS
Part Number: FR500A - Miniature, UFR - Standard & Large
Function: Remove water and particle, accurate and easy pressure setting.
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature, Standard & Large)
Filtration: 5μm (Standard), 40μm (Option)
Part Number: SSFR500 - Miniature, USFR - Standard, USFRC - Large
Function: Remove water and particle, accurate and easy pressure setting. For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard & Large)
Filtration: 5μm
COMBINATION SETS - FILTER/REGULATOR/LUBRICATOR
Part Number: FRL700A - F/R/L (3 Unit) & FRL600A - F/R+L (2 Unit) - Miniature
UFRL - F/R/L (3 Unit), & UFR/L - F/R+L (2 Unit) - Standard & Large
Function: Effective air filtration, pressure setting, and quality lubrication
Port Size: 1/8" & 1/4" (Miniature), 1/4" to 1" (Standard & Large)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature, Standard & Large)
Filtration: 5μm (Standard), 40μm (Option)

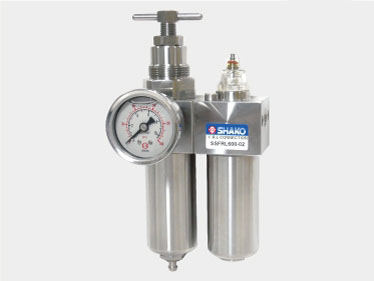

Part Number: SSFRL600 - F/R+L (2 Unit) - Miniature,
USFR/L - F/R+L (2 Unit) - Standard,
USFR/LC - F/R+L (2 Unit) - Large
Function: Effective air filtration, pressure setting, and quality lubrication. For high pressure use, corrosion and chemical resistance.
Port Size: 1/4" (Miniature), 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 20kg f/cm2 (Miniature), 0.5 - 30kg f/cm2 (Standard, Large)
Filtration: 5μm
ADDITIONAL
Part Number: AD940 - Standard & Large
Function: Effectively and quickly drains water
Port Size: 1/2" to 1/8"
Operating Pressure Range: 0.5 - 10kg f/cm2
Part Number: SHV - Standard
Function: Cut air source effectively, lock out for safety, connectable with FRL
Port Size: 1/4" to 1/2" (Standard)
Operating Pressure Range: 0.5 - 12kg f/cm2 (Miniature)
Part Number: UV - Standard
Function: Removes particle effectively, easily replaceable filter element.
Port Size: 1/4" to 1/2" (Standard)
Operating Pressure Range: 0.5 - 10kg f/cm2 (Miniature)
Filtration: 5μm (Standard), 40μm (Option)
Part Number: UMF - Standard & Large
Function: Effectively removes oil, water, carbon and particle.
Port Size: 1/4" to 1/2" (Standard), 3/4" & 1" (Large)
Operating Pressure Range: 0.5 - 10kg f/cm2
Filtration: 0.01μm (Standard)
ACCESSORIES
Part Number: FRL Series KUX0000020 - Miniature, KUX0000030 Standard
Stainless Series: KUX0000040 - Miniature, KUX0000050 - Standard
Port Size: 1/4" to 1"
Part Number: DA-014 (White), DA-014W (Black) - Male Thread,
DA-014N (White), DA-014NW (Black) - Female Thread
Port Size: 6mm (PU Tube)
Part Number: ZGUX-1 - Semi-Auto, ZGUX - Manual
Function: Completely drain water, oils, and particle
Port Size: 6mm (PU Tube)
Operating Pressure Range: 2 - 8kg f/cm2
Discharge Capacity: 10 - 15cc (12 times per min)
Operating Pressure Range: 2 - 8kg f/cm2

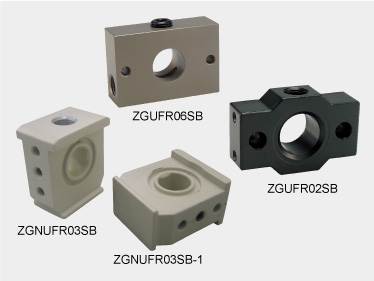

Part Number: ZGUFR02SB - For UFR/L 02, 03, 04 ZGUFR06SB - For UFR/L 06, 08
P/N: ZUS0032041 (40μm) & ZUS0032042 (5μm) - For FRL600(A,B), F200(A,B), FR500(A,B)
P/N: KUN0010035 (40μm) & KUN0010036 (5μm) - For UFR/L 02, 03, 04 (Remark dia. 28)
P/N: KUB0008060 (40μm) & KUB0008061 (5μm) - For UFR/L 06, 08
