KNOCKS AIR PREPARATION FILTERS - FUTURA SERIES
The Futura series features an innovative concept for the material it uses, Grivory GV-6H. It is more economical, offers a greater number of design options and weighs less.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz. Scroll through the listed products below for individual product information or click the series link you would like to view:
FILTERS
Part Number: 91300.CC00, 91300.CC01, 91300.CC50, 91300.CC51
Sinter filter centrifugal principle
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C
Bowl: PC
Drain: HA
Mounting: vertical
Filter element: 5 μm
Part Number: 91301.CC00, 91301.CC01, 91301.CC50, 91301.CC51, 91301.DD00, 91301.DD01, 91301.DD50, 91301.DD51
Sinter filter centrifugal principle
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 5 μm

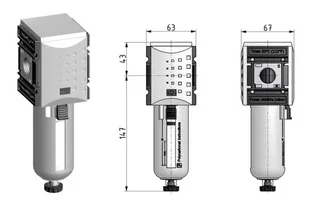

Part Number: 91302.DD00, 91302.DD01, 91302.DD50, 91302.DD51, 91302.EE00, 91302.EE01, 91302.EE50, 91302.EE51
Sinter filter centrifugal principle
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 5 μm
Part Number: 91304.FF00, 91304.FF01, 91304.FF50, 91304.FF51, 91304.GG00, 91304.GG01, 91304.GG50, 91304.GG51
Sinter filter centrifugal principle
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 5 μm
PREFILTER
Part Number: 91310.CC00, 91310.CC01, 91310.CC50, 91310.CC51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C
Bowl: PC
Drain: HA
Mounting: vertical
Filter element: 0,3 μm
Particle separation: 99.999%
Part Number: 91311.CC00, 91311.CC01, 91311.CC50, 91311.CC51, 91311.DD00, 91311.DD01, 91311.DD50, 91311.DD51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC
Drain: HA
Mounting: vertical
Filter element: 0,3 μm
Particle separation: 99.999%
Part Number: 91312.DD00, 91312.DD01, 91312.DD50, 91312.DD51, 91312.EE00, 91312.EE01, 91312.EE50, 91312.EE51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 0,3 μm
Particle separation: 99.999%
Part Number: 91314.FF00, 91314.FF01, 91314.FF50, 91314.FF51, 91314.GG00, 91314.GG01, 91314.GG50, 91314.GG51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 0,3 μm
Particle separation: 99.999%
FINEFILTER
Part Number: 91320.CC00, 91320.CC01, 91320.CC50, 91320.CC51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C
Bowl: PC
Drain: HA
Mounting: vertical
Filter element: 0,01 μm
Particle separation: > 0,01 μm 99,999%
Residual oil content: < 0,01 mg/m³ 99.999%
Part Number: 91321.CC00, 91321.CC01, 91321.CC50, 91321.CC51, 91321.DD00, 91321.DD01, 91321.DD50, 91321.DD51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 0,01 μm
Particle separation: > 0,01 μm 99,999%
Residual oil content: < 0,01 mg/m³ 99.999%
Part Number: 91322.DD00, 91322.DD01, 91322.DD50, 91322.DD51, 91322.EE00, 91322.EE01, 91322.EE50, 91322.EE51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 0,01 μm
Particle separation: > 0,01 μm 99,999%
Residual oil content: < 0,01 mg/m³ 99.999%
Part Number: 91324.FF00, 91324.FF01, 91324.FF50, 91324.FF51, 91324.GG00, 91324.GG01, 91324.GG50, 91324.GG51
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Mounting: vertical
Filter element: 0,01 μm
Particle separation: > 0,01 μm 99,999%
Residual oil content: < 0,01 mg/m³ 99.999%
ACTIVE CARBON FILTER
Part Number: 91330.CC00, 91330.CC50
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 0 bar
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C
Bowl: PC
Mounting: vertical
Part Number: 91331.CC00, 91331.CC50, 91331.DD00, 91331.DD50
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 0 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Mounting: vertical
Part Number: 91332.DD00, 91332.DD50, 91332.EE00, 91332.EE50
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 0 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Mounting: vertical
Part Number: 91334.FF00, 91334.FF50, 91334.GG00, 91334.GG50
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 min: 0 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Mounting: vertical
