KNOCKS AIR PREPARATION REGULATORS - FUTURA SERIES
The Futura series features an innovative concept for the material it uses, Grivory GV-6H. It is more economical, offers a greater number of design options and weighs less.
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz.
Scroll through the listed products below for individual product information or click the series link you would like to view:
FILTER REGULATORS
Stock Part Number: 92100.CC00, 92100.CC01, 92100.CC50, 92100.CC51
Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C
Bowl: PC
Drain: HA
Mounting: vertical
Filter element: 5 μm
Stock Part Number: 92101.CC00, 92101.CC01, 92101.CC50, 92101.DD00, 92101.DD01, 92101.DD50
Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Locking: rotary lock or padlock possible
Mounting: vertical
Filter element: 5 μm

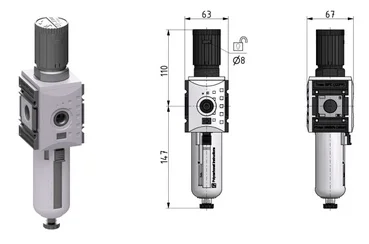

Stock Part Number: 92102.DD00, 92102.DD01, 92102.DD50, 92102.DD51, 92102.EE00, 92102.EE01, 92102.EE50, 92102.EE51
Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Locking: rotary lock or padlock possible
Mounting: vertical
Filter element: 5 μm
Stock Part Number: 92104.FF00, 92104.FF01, 92104.FF50, 92104.FF51, 92104.GG00, 92104.GG01, 92104.GG50, 92104.GG51
Sinter filter centrifugal principle, pilot controlled diaphragm-type pressure with relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Bowl: PC with PA bowl guard
Drain: HA
Locking: rotary lock or padlock possible
Mounting: vertical
Filter element: 5 μm
Air consumption: max 1,5 l/min
PRESSURE REGULATORS

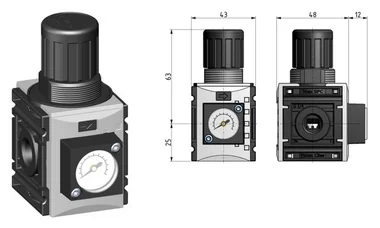

Stock Part Number: 91700.CC00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C

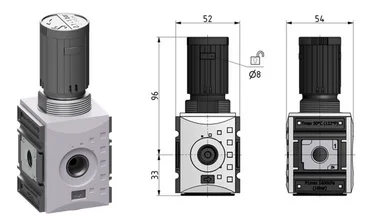

Stock Part Number: 91701.CC00, 91701.DD00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible

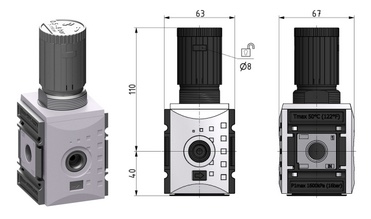

Stock Part Number: 91702.DD00, 91702.EE00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible

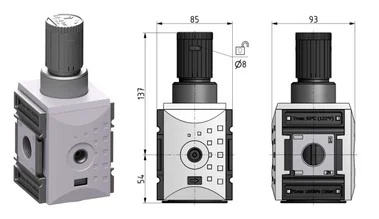

Stock Part Number: 91704.FF00, 91704.GG00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible
Air consumption: max 1,5 l/min
PRESSURE REGULATORS WITH CONTINUOUS PRESSURE SUPPLY

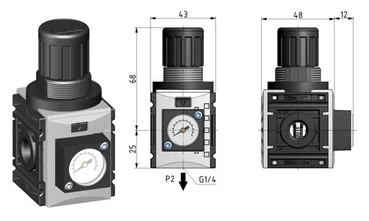

Stock Part Number: 91730.CC00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 12 bar
Temperature range: -10°C - +50°C

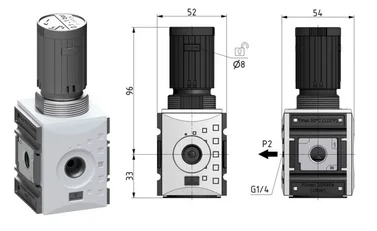

Stock Part Number: 91731.CC00, 91731.DD00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible

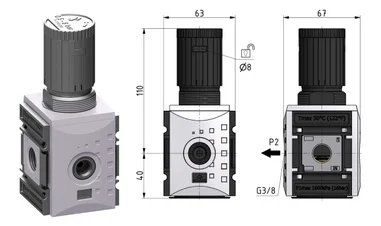

Stock Part Number: 91732.DD00, 91732.EE00
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible
PRECISION PRESSURE REGULATORS

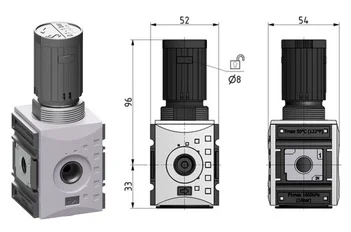

Stock Part Number: 96201.CC20, 96201.DD20
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible
Air consumption: 2,6 l/min at P2 = 6 bar

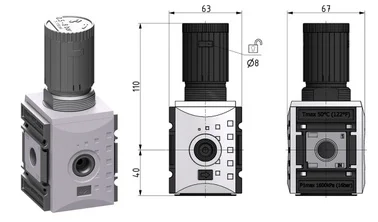

Stock Part Number: 96202.DD20, 96202.EE20
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible
Air consumption: 2,6 l/min at P2 = 6 bar

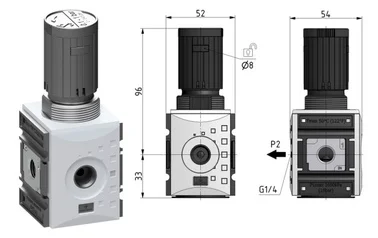

Stock Part Number: 96231.CC20, 96231.DD20
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible
Air consumption: 2,6 l/min at P2 = 6 bar
Stock Part Number: 96232.DD20, 96232.EE20
Air line regulator with diaphragm and relieving feature.
Series: Futura
Medium: Compressed air, neutral gases
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +50°C
Locking: rotary lock or padlock possible
Air consumption: 2,6 l/min at P2 = 6 bar
