EDCO VACUUM FITTINGS & ACCESSORIES
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full EDCO Vacuum Fitting & Accessory PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information or click the series link you would like to view:
4-8MM FITTINGS

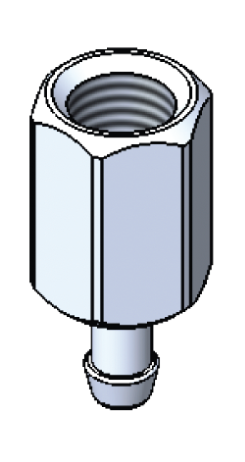

FEMALE - 4, 5, 6 & 8MM Cup Fittings
Part Number: 8-4F, 8-5F
MALE - 4, 5, 6 & 8MM Cup Fittings
Part Number: 8-10M
SIDE VACUUM PORT - 4, 5, 6 & 8MM Cup Fittings
Part Number: 8-S5F-6M
For more information please refer to our catalogue
10-15MM FITTINGS
FEMALE - 10 & 15MM Cup Fittings
Part Number: 10-4F, 10-5F, 10-18F
MALE - 10 & 15MM Cup Fittings
Part Number: 10-10M, 10-18M
SIDE VACUUM PORT - 10 & 15MM Cup Fittings
Part Number: 10-S5F-6M
For more information please refer to our catalogue
20-35MM FITTINGS
FEMALE - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-5F, 32-6F, 32-8F, 32-G14F, 32-18F
Optional Filters: Polyethylene filter disk or Stainless steel filter screen.
MALE - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-5M, 32-6M, 32-8M, 32-G14M, 32-14M, 32-18M
Optional Filters: Polyethylene filter disk or Stainless steel filter screen.
MALE STUD - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-6MS, 32-10MS
CROSS FITTINGS - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-5X5F, 32-5X48F
DIE CUTTING - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-DC75X31
SIDE VACUUM PORT FEMALE - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-S5F-5F, 32-S5F-6F, 32-S5F-8F
TOOL MOUNT - 20, 25, 30 & 35MM Cup Fittings
Part Number: 32-18FX40
For more information please refer to our catalogue
40MM FITTINGS
FEMALE - 40MM Cup Fittings
Part Number: 40-38F, 40-G14F, 40-18F, 40-8F, 40-6F
Optional Filters: Polyethylene filter disk or Stainless steel filter screen
MALE - 40MM Cup Fittings
Part Number: 40-38M, 40-G38M, 40-14M, 40-G14M, 40-18M, 40-8M, 40-6M
Optional Filters: Polyethylene filter disk or Stainless steel filter screen
MALE STUD - 40MM Cup Fittings
Part Number: 40-6MS, 6F-G14F, 6F-14M
CROSS FITTINGS - 40MM Cup Fittings
Part Number: 40-5X5F, 40-5X18F
SIDE VACUUM PORT - 40MM Cup Fittings
Part Number: 40-S5F-6F, 40-S5F-8F

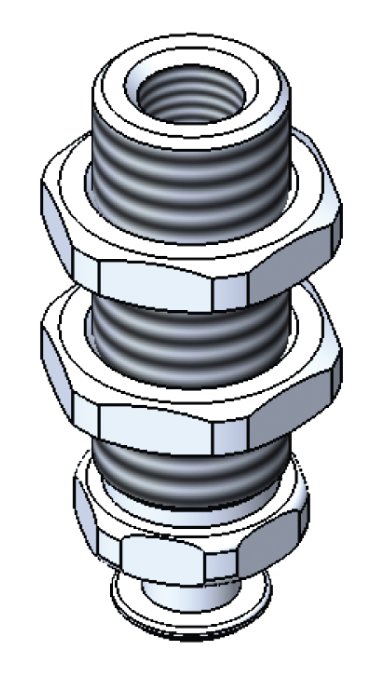

TOOL MOUNT - 40MM Cup Fittings
Part Number: 40-18FX40
For more information please refer to our catalogue
50MM FITTINGS
FEMALE - 50MM Cup Fittings
Part Number: 50-38F, 50-14F, 50-G14F, 50-18F, 50-12X1.75F, 50-8F, 50-6F
Optional Filters: Polyethylene filter disk or Stainless steel filter screen
MALE - 50MM Cup Fittings
Part Number: 50-38M, 50-G38M, 50-14M, 50-G14M, 50-18M, 50-N18M, 50-8M, 50-6M
Optional Filters: Polyethylene filter disk or Stainless steel filter screen
MALE STUD - 50MM Cup Fittings
Part Number: 50-6MS, 6F-G14F, 6F-14M
CROSS FITTING - 50MM Cup Fittings
Part Number: 50-5X5F, 50-5X18F
SIDE VACUUM PORT - 50MM Cup Fittings
Part Number: 50-S5F-8F, 50-S5F-6F

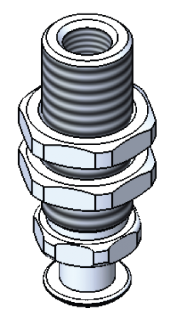

TOOL MOUNT - 50MM Cup Fittings
Part Number: 50-18FX40
For more information please refer to our catalogue
65MM FITTINGS
FEMALE - 65MM Cup Fittings
Part Number: 65-38F, 65-G14F, 65-18F
Optional Filters: Polyethylene filter disk or Stainless steel filter screen

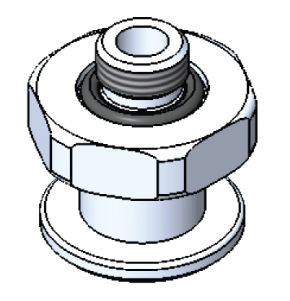

MALE - 65MM Cup Fittings
Part Number: 65-38M, 65-G38M, 65-14M, 65-G14M, 65-18M
Optional Filters: Polyethylene filter disk or Stainless steel filter screen
MALE STUD - 65MM Cup Fittings
Part Number: 65-18MS
For more information please refer to our catalogue
75MM-100MM FITTINGS
FEMALE - 75, 110 & 150MM Cup Fittings
Part Number: 75-18F, 75-14F, 75-38F, 75-12F, 110-38F, 110-12F, 150-38F, 150-12F
For more information please refer to our catalogue
MISCELLANEOUS FITTINGS
Part Number: G12M-M16X1.5F, G12-M12X1.75F, G12-M10X1.5F, G12M-M10X1.25F, G12M-M8X1.25F

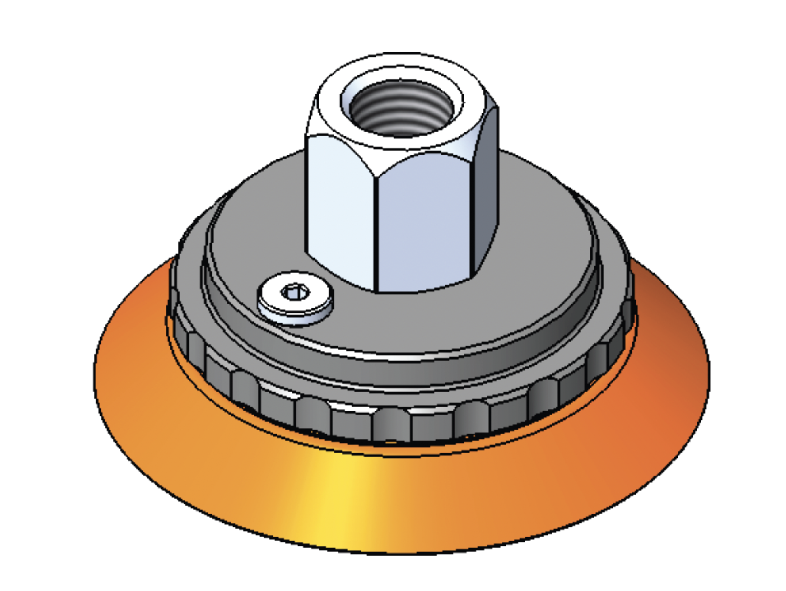

Part Number: XP-F150N-12F-SS, XP-B110N-12F-SS, XP-B150S-12F-SS, XP-F110V-12F-SS
Part Number: 12M-S18F-16M
Part Number: TSA-18M, TSA-38M, TSA-12M

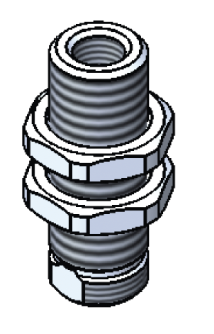

Part Number: TT18-16X40, 18F-16X40
