PRODUCTS > CYLINDERS > ROYAL > ‘L’ SERIES



ROYAL ‘L’ SERIES CYLINDERS

Royal L-Series pneumatic and low pressure hydraulic cylinders are tie rod style NFPA standard. They have many standard design options limiting the need for customization. Twenty six mounting styles are available. Bore sizes are from 1 1/2" to 12". For other sizes or custom cylinders please contact Mac Valves Pacific. Also available with nitro-hardened rods.

Click here to download the full Royal ‘L’ Series Cylinders PDF catalogue . Scroll through the listed products below for individual product information or click the series link you would like to view:

Fixed Clevis 'LC', Pivot Eye 'LE'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Fixed Clevis LC Pivot Eye LE.jpeg

Foot Mount 'LF'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Foot Mount LF.jpeg
Detachable Blind End Clevis 'LMP', Self Aligning Eye 'LW'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Detachable Blind End Clevis LMP Self Aligning Eye LW.jpeg

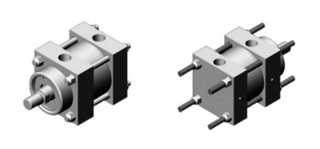

No Mount 'LNM', Extended Tie-Rods Both Ends 'LNA'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series No Mount LNM Extended Tie-Rods Both Ends LNA.jpeg
Extended Tie-Rods Blind End 'LNB', Extended Tie-Rods Gland End 'LNC'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Extended Tie-Rods Blind End LNB Extended Tie-rods Gland End LNC.jpeg
Rod End Rectangular Flange 'LR', Rod End Square Flange 'LRS'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Rectangular Flange LR Rod End Square Flange LRS.jpeg
Blind End Rectangular Flange 'LB', Blind End Square Flange 'LBS'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Blind End Rectangular Flange LB Blind End Square Flange LBS.jpeg
Rod End Trunnion 'LTR', Blind End Trunnion 'LTB'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12"
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Rod End Trunnion LTR Blind End Trunnion LTB.jpeg
Double Rod 'LD', Mid Trunnion 'LT'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12'
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Double Rod LD Mid Trunnion LT.jpeg
Common Head 'LCH', Common Rod 'LCR'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12'
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Common Head LCH Common Rod LCR.jpeg
Common Head/Common Rod 'LCHR'
Bore sizes: 1 1/2", 2", 2 1/2", 3 1/4", 4", 5", 6", 8", 10", 12'
Made of nitrotec treated steel with Buna "N" seals
Royal L Series Common Head Common Rod LCHR.jpeg

ACCESSORIES

Royal L Series - Accessories 1.jpeg

Royal L Series - Accessories 3.jpeg
Royal L Series - Accessories 4.jpeg
Royal L Series - Accessories 6.jpeg
