KNOCKS offers you three comprehensive product series which, thanks to various manufacturing materials, make them suitable for a broad range of requirements. The Futura series features an innovative concept for the material it uses, Grivory GV-6H. It is more economical, offers a greater number of design options and weighs less. The Multi-Fix and Standard series are made of die-cast zinc or aluminium, thereby offering additional robustness thanks to influence from the outside.

Service 2 Units
Service 2 Unit BG0

Part Number: 9.3100.00.005.0V, 9.3101.00.005.0V, 9.3101.00.007.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA
Mounting: vertical
Filter element: 5 μm
Bowl volume lubricator: 17 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 2 Unit BG1

Part Number: 9.3112.00.005.0V, 9.3112.00.007.0V, 9.3112.00.008.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 5 μm
Bowl volume lubricator: 40 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 2 Unit BG2

Part Number: 9.3122.00.125.0V, 9.3123.00.125.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 40 μm
Bowl volume lubricator: 110 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 2 Unit BG3

Part Number: 9.3133.00.005.0V, 9.3133.00.007.0V, 9.3133.00.008.0V, 9.3133.00.010.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 5 μm
Bowl volume lubricator: 135 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 2 Unit BG5

Part Number: 9.3155.00.125.0

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 40 μm
Bowl volume lubricator: 550 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 3 Units
Service 3 Unit BG1

Part Number: 9.3011.00.005.0V, 9.3012.00.005.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 5 μm
Bowl volume lubricator: 40 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 3 Unit BG2

Part Number: 9.3023.00.125.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 40 μm
Bowl volume lubricator: 110 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 3 Unit BG3

Part Number: 9.3033.00.005.0V, 9.3033.00.013.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 5 μm
Bowl volume lubricator: 135 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32

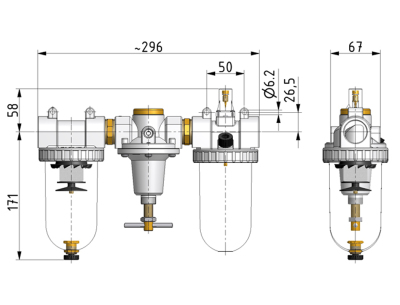

Service 3 Unit BG3

Part Number: 9.3034.00.005.0V, 9.3035.00.005.0V, 9.3035.00.008.0V, 9.3035.00.010.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 5 μm
Bowl volume lubricator: 135 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 3 Unit BG5

Part Number: 9.3055.00.125.0V

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 40 μm
Bowl volume lubricator: 550 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32




Service 3 Unit BG8

Part Number: 9.3088.00.125.0, 9.3088.00.127.0, 9.3088.00.128.0, 9.3088.00.132.0, 9.3088.00.133.0

Sinter filter centrifugal principle, diaphragm-type pressure with relieving feature, proportional oiler

Series:
Standard

Medium: compressed air, neutral gases
Supply pressure P1 min: 1,5 bar
Supply pressure P1 max: 16 bar
Temperature range: -10°C - +60°C
Bowl:
PC
Drain: HA3
Mounting: vertical
Filter element: 60 μm
Bowl volume lubricator: 1700 cm³
Oil metering qv=1.000l/min: 1 - 2 drops/min
Oil type: CL 32 DIN 51517 - ISO VG 32
