FITTINGS & TUBING - TECHNICAL tubing & recoil
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the full Fittings & Tubing PDF catalogue or see below for individual product information. Scroll through the listed products below for individual product information.
POLYURETHANE (PU)
FLEXIBLE POLYURETHANE
Part Number: 1X-1XX-XX
Temperature Range: -40 to 73 °C
Sizes: 4, 6, 8, 10, 12, 16mm
Lengths: Bags & reels dependent on size. Cut lengths on request.

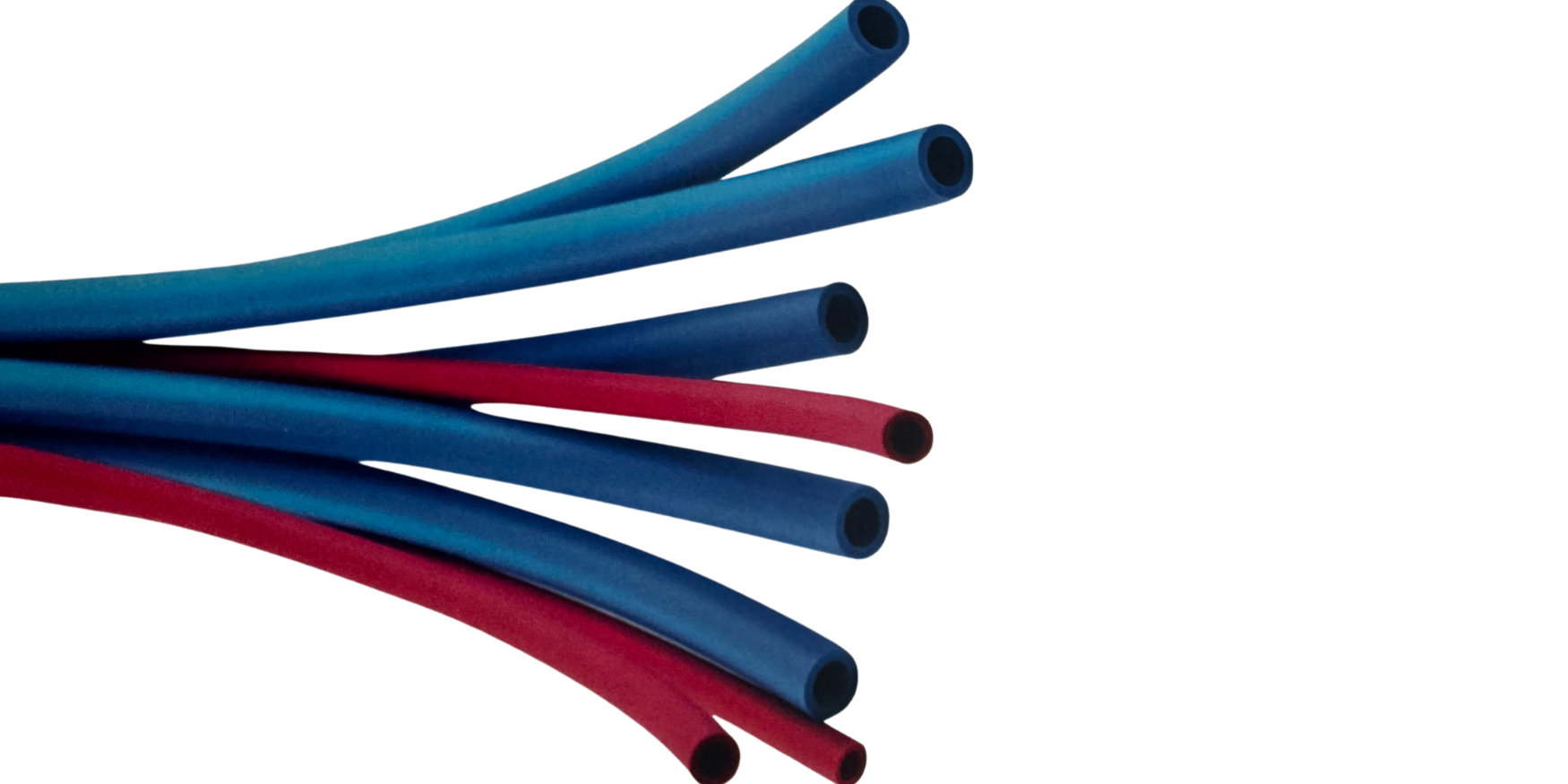

WELD SPATTER GUARD -INDENT ITEM
Resistance from incidental weld spatter and a range of chemicals.
Part Number: 1X-3XX-XX
Temperature Range: -40 to 73 °C
Size & Lengths: Dependent on request.
STATIC DISSIPATIVE -INDENT ITEM
Dissipates electrostatic charges and contains no conductive fillers.
Part Number: 1X-4XX-XX
Temperature Range: -40 to 73 °C
Size & Lengths: Dependent on request.
FLEXIBLE POLYURETHANE TWIN TUBE
Part Number: M4XXXX
Temperature Range: -40 to 51 °C
Sizes: 4, 6, 8, 10mm - Black/blue
Lengths: 30m bag & cut lengths on request.
nylon

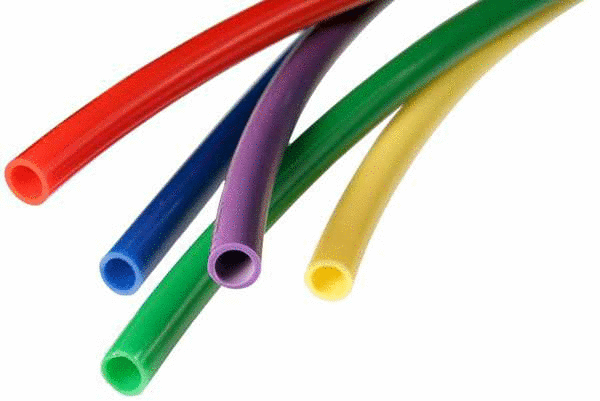

NYLON
Part Number: 1X-2XX-XX
Temperature Range: -51° to 93°C
Vacuum rating: to 28” Hg
Working pressure: 4:1 safety factor
UV Stabilized
Resin Compliance: meets UL94HB testing requirements
Download catalogue
HIGH PRESSURE NYLON
Part Number: TBXX-00-XX0-NT
Temperature Range: -51° to 93°C
Vacuum rating: to 28” Hg
Working pressure: 4:1 safety factor
UV Stabilized
Resin Compliance: meets UL94HB testing requirements
Download catalogue
POLYETHYLENE (PE) - FLUOROPOLYMER (FEP) - Kynar
POLYETHYLENE (PE)
Linear low density.
Temperature Range: -40°C to 66°C
Working Pressure: 3:1 safety factor
Sizes: 6mm, 8mm, 10mm, 12mm
Download catalogue
FLUOROPOLYMER (FEP) - HIGH TEMP
Temperature Range: -40 - 204°C
Working Pressure: 4:1 safety factor
Sizes: 8mm 10mm
Lengths: Cut lengths per meter
Download catalogue

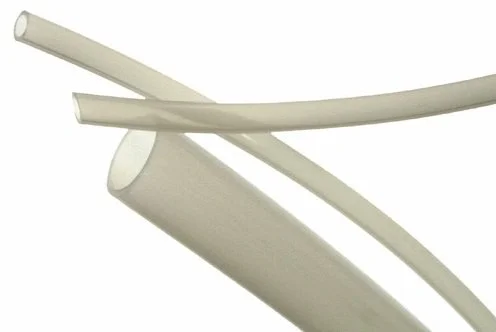

KYNAR TUBING
Temperature Range: -40°F - 82°F
Working pressure: 4:1 safety factor
Sizes: 4mm, 6mm, 8mm 10mm
Lengths: Cut lengths per meter
Download catalogue
Spiral / Recoil Tubing
PU - RECOIL W/ BSPT FITTING
Can come with either a BSPT fitting or a swivel/fixed tail with a spring guard.
Working Temperature: -15 to 70 °C
O.D Sizes:
Lengths: 2m, 4m or 6m BSPT
PU - TWIN RECOIL
Part Number: M4XXXX
Working Temperature: -15 to 70 °C
O.D Sizes: 4, 6mm
Lengths: 1, 2, 2.4, 4m
PU - STANDARD RECOIL
Part Number: 18-19958XX0-A
Working Temperature: -15 to 70 °C / 5 to 158 °F
O.D Sizes: 6, 8, 10, 12
Lengths: 2m, 4m or 6m BSPT
