BLOWGUNS
Should you require further information or cannot locate a product/service please do not hesitate to make contact - sales@macvalves.co.nz
Click here to download the MVP Fittings & Tubing Catalogue or see below for individual product information. Scroll through the listed products below for individual product information or click the category link you would like to view:
BLOWGUNS:
N/P Brass & Hardened Steel
Legris Technical Polymer
Aignep Blowguns with SS Pipe
Coilhose Standard Series Blowguns
Coilhose Cannon High-Volume Blowguns
Coilhose Typhoon High-Flow Blowguns
NOZZLES
NICKEL PLATED BRASS & HARDENED STEEL BLOWGUN
Metal blowgun button operated - female
Part Number: 0622-26-73
Thread Size: G1/4
Connection 1 Thread Style: BSPP
Maximum Operating Temperature: 50˚C
O-Ring Material: NBR
Body Material: Nickel Plated Brass
Lever Operated Blowgun With Removable Nozzle, BSP & NPT.
Part Number: 0623-10-35
Thread Size: G1/4
Connection 1 Thread Style: BSPP
Maximum Operating Temperature: 50˚C
O-Ring Material: NBR
Body Material: Nickel Plated Brass
TECHNICAL POLYMER BLOWGUN
Standard blowgun angled nozzle - Female
Part Number: 0659-00-13
Thread Size: G1/4
Connection 1 Thread Style: BSPP
Maximum Operating Temperature: 50˚C
O-Ring Material: NBR
Body Material: Technical Polymer
Color: Blue
Progressive control blowgun interchangeable nozzle - Female
Part Number: 0652-66-13
Thread Size: G1/4
Connection 1 Thread Style: BSPP
Maximum Operating Temperature: 50˚C
O-Ring Material: NBR
Body Material: Technical Polymer
Color: Blue
Safety Integrated Pressure Regulator - Female
Part Number: 0654-00-13
Thread Size: G1/4
Connection 1 Thread Style: BSPP
Maximum Operating Temperature: 50˚C
O-Ring Material: NBR
Body Material: Technical Polymer
Color: Yellow
BLOWGUNS WITH STAINLESS STEEL PIPES
Blowgun with Stainless Steel Pipe
Part Numbers (Aignep): 00301 00 001, 00301 00 002, 00301 00 003
Component Parts and Materials:
Body: Nickel-plated Brass
Back Connection: Nickel-plated Brass
Locking Nut: Nickel-plated Brass
Nozzle: Stainless Steel AISI 304
Operating Temperature: Min - 10 °C - Max + 80 °C
Pressure: 10 bar (1.0 MPa)
Additional Information: 450 Nl/min @ 6 bar - 616 Nl/min @ 8 bar
Screen Blowgun with Stainless Steel Pipe
Part Numbers (Aignep): 00302 00 001, 00302 00 002, 00302 00 003
Component Parts and Materials:
Body: Nickel-plated Brass
Back Connection: Nickel-plated Brass
Locking Nut: Nickel-plated Brass
Nozzle: Stainless Steel AISI 304
Operating Temperature: Min - 10 °C - Max + 80 °C
Pressure: 10 bar (1.0 MPa)
Additional Information: 400 Nl/min @ 6 bar - 533 Nl/min @ 8 bar
Blowgun with Stainless Steel Safety Pipe - Double Feed
Part Numbers (Aignep): 00363 00 001
Component Parts and Materials:
Body: Technopolymer
Back Connection: Nickel-plated Brass
Locking Nut: Nickel-plated Brass
Nozzle: Stainless Steel AISI 304
Operating Temperature: Min - 10 °C - Max + 80 °C
Pressure: 12 bar (1.2 MPa)
Additional Information: 433 Nl/min @ 6 bar - 533 Nl/min @ 8 bar
COILHOSE STANDARD SERIES BLOWGUNS

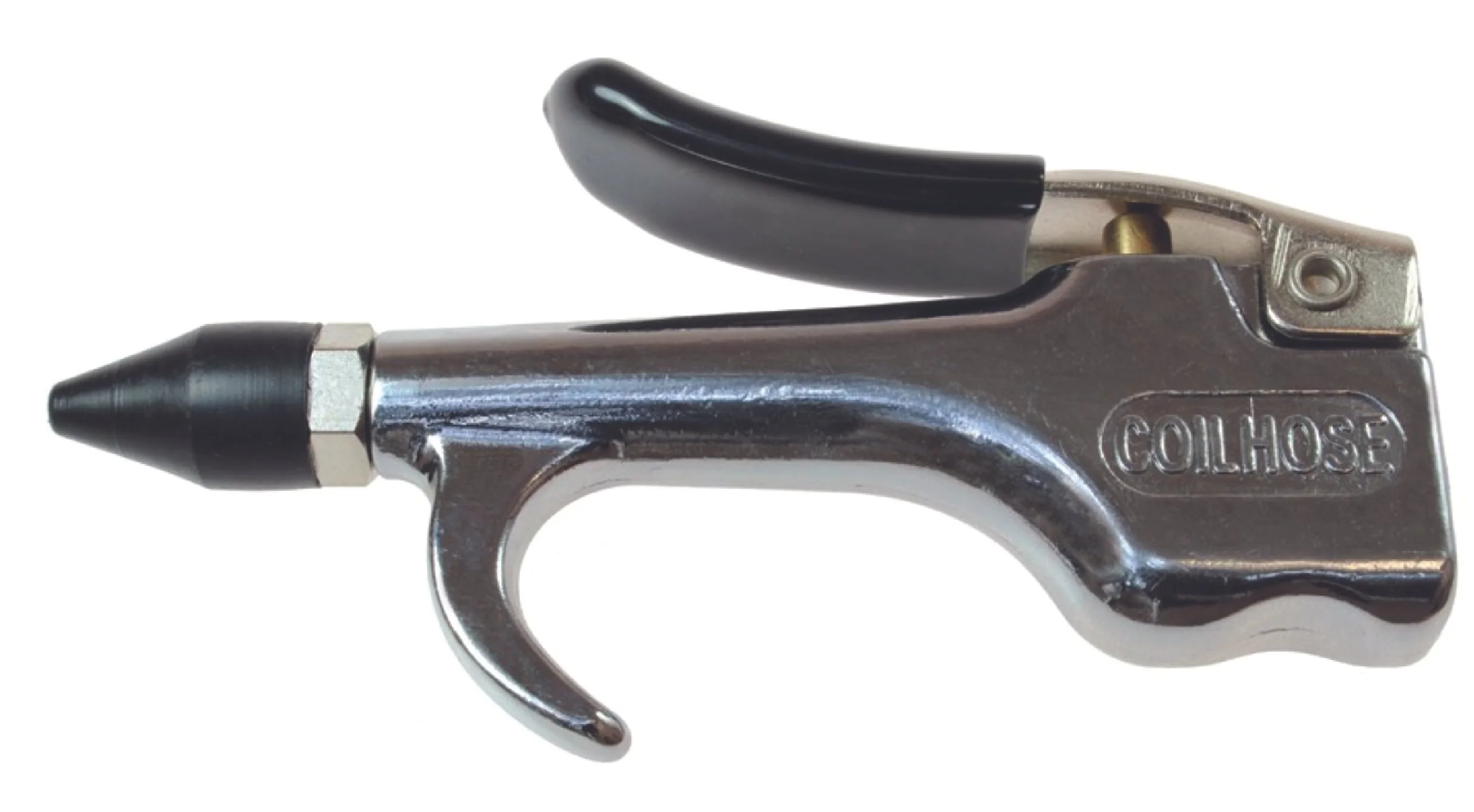

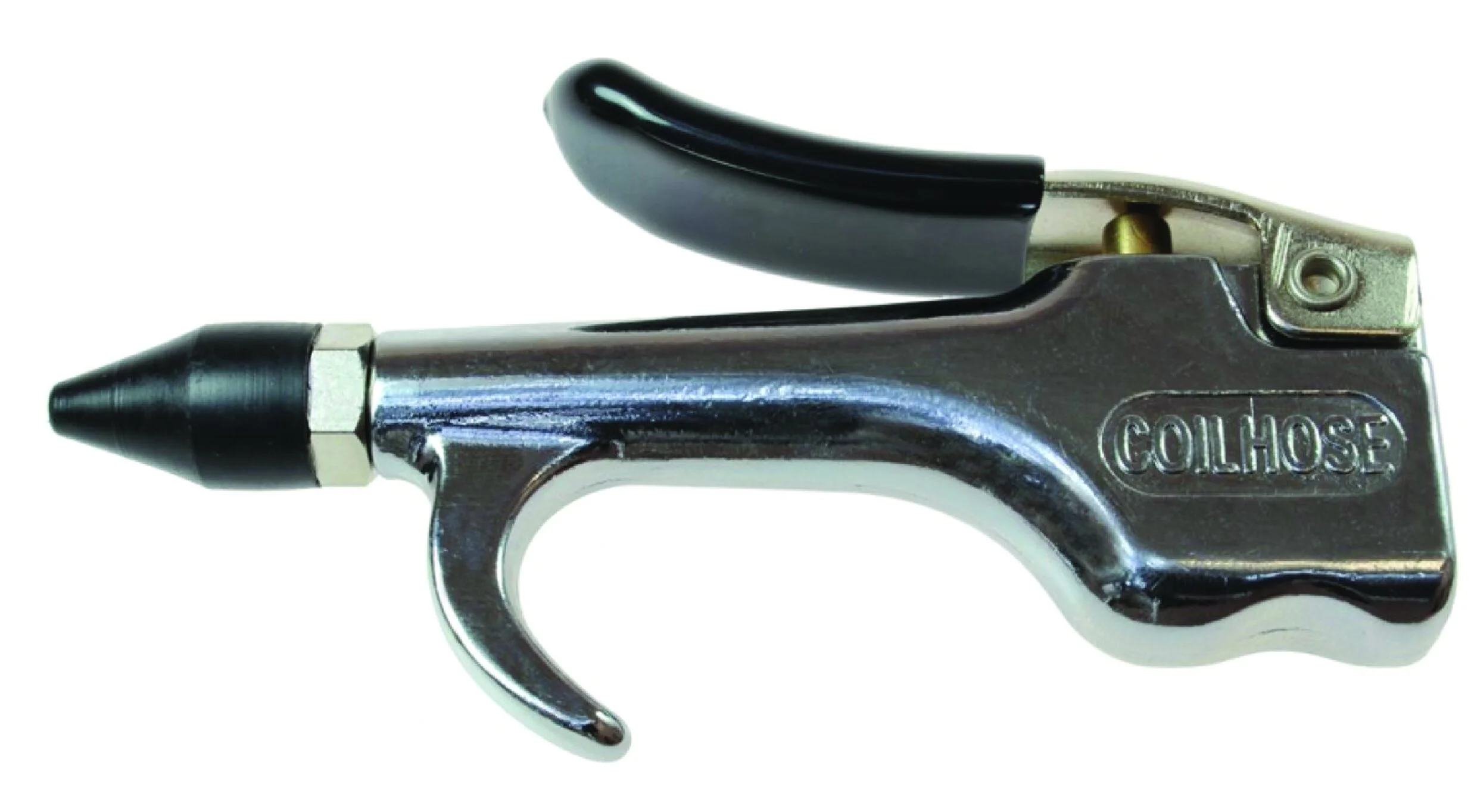

600 Series Blow Gun with Rubber Tip
Part Numbers (Coilhose): 601
Suitable for: Clear Transmission Lines or Other Tubing
Supply Pressure: Should be Regulated to 30 psi or below
Ergonomic Re-design of Traditional Thumb Lever Models
Not OSHA Compliant for Dead End Pressure (1910.242B)
770 Series Blow Guns
The 770 Series is a lightweight polymer pistol grip blowgun. Models that are designated as “safety” conform to OSHA standards for noise levels (1910.95) and 30 psi dead-end pressure (1910.242B).
FEATURES:
• Variable Flow Trigger & Pistol Grip Provide Enhanced Control
• Lightweight Reinforced Nylon Construction
• Accepts Standard 1/8" Tips
• Maximum Input Pressure: 150 psi
• 1/4" NPT Inlet
Part Numbers (Coilhose):
770-S: Variable Control Pistol Grip Blow Gun with Fixed Extended Safety Tip - Fixed Safety
770S-DPB: Variable Control Pistol Grip Blow Gun with Extended Safety Tip, Display Bag - Fixed Safety
771-03S: Variable Control Pistol Grip Blow Gun with 3" Safety Extension - 3" Safety Extension
771-06S: Variable Control Pistol Grip Blow Gun with 6" Safety Extension - 6" Safety Extension
771-08S: Variable Control Pistol Grip Blow Gun with 8" Safety Extension - 8" Safety Extension
771-10S: Variable Control Pistol Grip Blow Gun with 10" Safety Extension - 10" Safety Extension
771-12S: Variable Control Pistol Grip Blow Gun with 12" Safety Extension - 12" Safety Extension
771-16S: Variable Control Pistol Grip Blow Gun with 16" Safety Extension - 16" Safety Extension
771-18S: Variable Control Pistol Grip Blow Gun with 18" Safety Extension - 18" Safety Extension
771-24S: Variable Control Pistol Grip Blow Gun with 24" Safety Extension - 24" Safety Extension
771-36S: Variable Control Pistol Grip Blow Gun with 36" Safety Extension - 36" Safety Extension
771-FLX7: Variable Control Pistol Grip Blow Gun with 7" Flexible Tip - 7" Flexible
771-FLX7-DPB: Variable Control Pistol Grip Blow Gun with 7" Flexible Tip, Display Bag - 7" Flexible
771-NS: Variable Control Pistol Grip Blow Gun with Non-Safety Tip - Non-Safety
771-NT: Variable Control Pistol Grip Blow Gun without Tip - No-Tip
771-RT: Variable Control Pistol Grip Blow Gun with Rubber Tip - Rubber
771-S: Variable Control Pistol Grip Blow Gun with Safety Tip - Safety
771-SB: Variable Control Pistol Grip Blow Gun with Safety Booster Tip - Safety Booster
771-SP: Variable Control Pistol Grip Blow Gun with Siphon Tip - Siphon
771-SR: Variable Control Pistol Grip Blow Gun with Safety Rubber Tip - Safety Rubber
771-SS: Variable Control Pistol Grip Blow Gun with Safety Shield Tip - Safety Shield
771-STT32: Variable Control Pistol Grip Blow Gun with 32" Telescoping Safety Tip 32" Telescoping Safety
771V-S: Variable Control Pistol Grip Blow Gun with High Volume Safety Tip - High Volume
BG-KITC: Variable Control Pistol Grip Blow Gun Kit with Tips - Various
BG-KITCST: Ultimate Variable Control Pistol Grip Blow Gun Kit with Tips - Various
COILHOSE CANNON HIGH-VOLUME BLOWGUNS
Coilhose Cannon Multijet Blowgun
The Coilhose Cannon® provides the user with up to 135 cfm of air flow. The Cannon® is a safer alternative to the field expedient ball valve and pipe often seen on job sites. The Cannon® features an assisted trigger that activates with little pull weight, and will shut off in the event the gun is dropped. The Multi-Jet Nozzle Cannon® provides a broader “wall” of air that will clear away debris on floors, roads, and walkways.
Note: Uses compressed air from tow-behind compressors. Compressor must replenish its tanks @ 40 CFM or greater.
Part Numbers (Coilhose): 9000-24MJ (24” Multijet Nozzle)
9000-48MJ (48” Multijet Nozzle)
9000-MJ (Multijet Nozzle)
Features:
Delivers up to 135 cfm
Inlet: 3/4" npt inlet
Air Assisted Trigger
Multi-Jet delivers air over a broad area

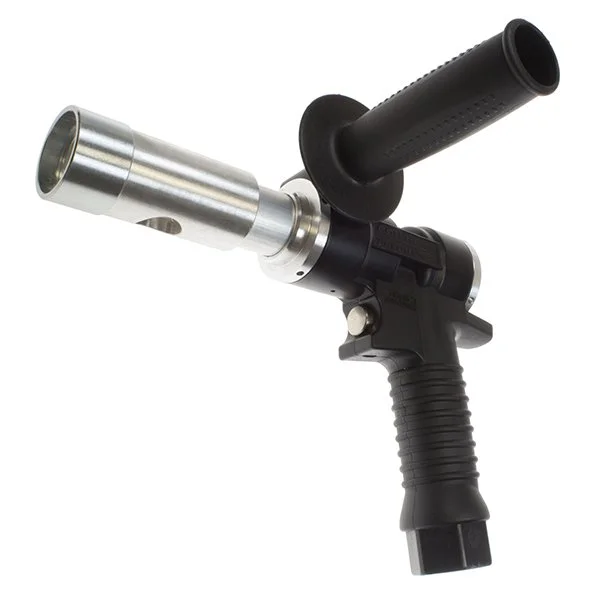

Coilhose Cannon Single Nozzle Blowgun
The Coilhose Cannon® provides the user with up to 135 cfm of air flow. The Cannon® is a safer alternative to the field expedient ball valve and pipe often seen on job sites. The Cannon® features an assisted trigger that activates with little pull weight, and will shut off in the event the gun is dropped. The Single Nozzle Cannon® provides a more concentrated airstream that will remove debris from cracks and corners.
Note: Uses compressed air from tow-behind compressors. Compressor must replenish its tanks @ 40 CFM or greater.
Part Numbers (Coilhose): 9000-24S (24” Single Nozzle)
9000-48S (48” Single Nozzle)
9000-S (Single Nozzle)
Features:
Delivers up to 135 cfm
Inlet: 3/4" npt inlet
Air Assisted Trigger
Single Nozzle concentrates air, perfect for cleaning cracks
Coilhose Cannon Blowgun Accessories
A full line of accessories for the Cannon are available to allow complete customization of your Cannon Blow Gun.
Part Numbers (Coilhose):
Cannon Service Kit - 9000-CSK
Cannon Grip Handle - 9100-14
Cannon Inlet Adapter, 3/4" MPT to 3/4" BSPP Female - 9100-ADP-34P
Cannon Trigger Kit - 9100-T
Cannon Blow Gun 2" Blow Gun Extension - 9200-EXT02
Cannon Blow Gun 24" Blow Gun Extension - 9200-EXT24
Cannon Blow Gun 48" Blow Gun Extension - 9200-EXT48
Cannon Safety Nozzle - 9400
Cannon Extension Coupling - 9600
Cannon Multi-Jet Nozzle - 9700
Pictured: Cannon Service Kit 9000-CSK
COILHOSE TYPHOON HIGH-FLOW BLOWGUNS

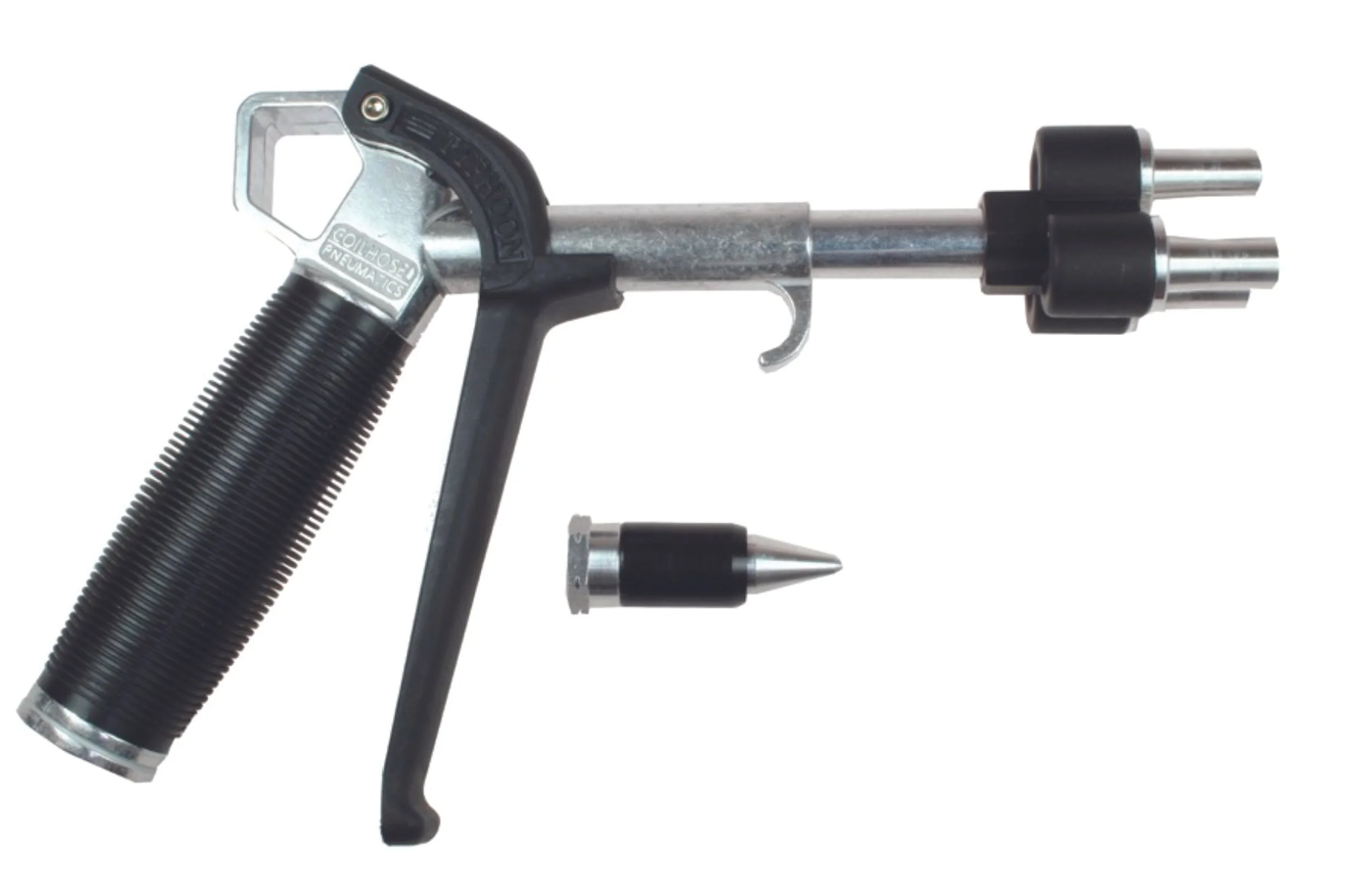

Coilhose Typhoon High-Flow Blowgun
Part Number (Coilhose): TYP-3800CS
Typhoon High Flow Blow Gun, 3/8" NPT, Clamshell
Features:
Multi-Jet Tip provides 3.1 lbs of thrust
OSHA Compliant with the standard multi-jet tip
Tough die cast zinc construction
Inlet: 3/8 " NPT
Maximum input pressure: 150 psi
NOZZLES
Coilhose Conical Rubber Blow Gun Tip (To fit Coilhose 600 Series Blowguns)
Part Number: SAT13
Perfect for cleaning out tubing or avoiding scratches in delicate sufaces.
Extension with Nozzle (To fit Coilhose Typhoon Blowguns)
Part Number: EXT24CN-DPB
Typhoon 24" Extension, High Flow Safety Tip, Display Bag
Equipped with High Flow Typhoon Nozzle
Can be Installed onto any Typhoon
OSHA Compliant
N/P Brass - Straight Tube Nozzle (Short), To Fit 0652 Blowgun
Part Number: 0690-04-00
N/P Brass - Angled Tube Nozzle (Long), To Fit 0652 Blowgun
Part Number: 0690-05-00
N/P Brass - Osha Angled Tube Nozzle (Short), To Fit 0652 Blowgun
Part Number: 0690-06-00
N/P Brass - Safety Nozzle, For Fluidising Powder, To Fit 0652 Blowgun
Part Number: 0690-07-00
N/P Brass - Coanda Effect Nozzle, To Fit 0652 Blowgun
Part Number: 0690-08-00
N/P Brass - Booster Nozzle, To Fit 0652 Blowgun
Part Number: 0690-10-00
N/P Brass - Booster Nozzle With Air Screen, To Fit 0652 Blowgun
Part Number: 0690-11-00
